Description

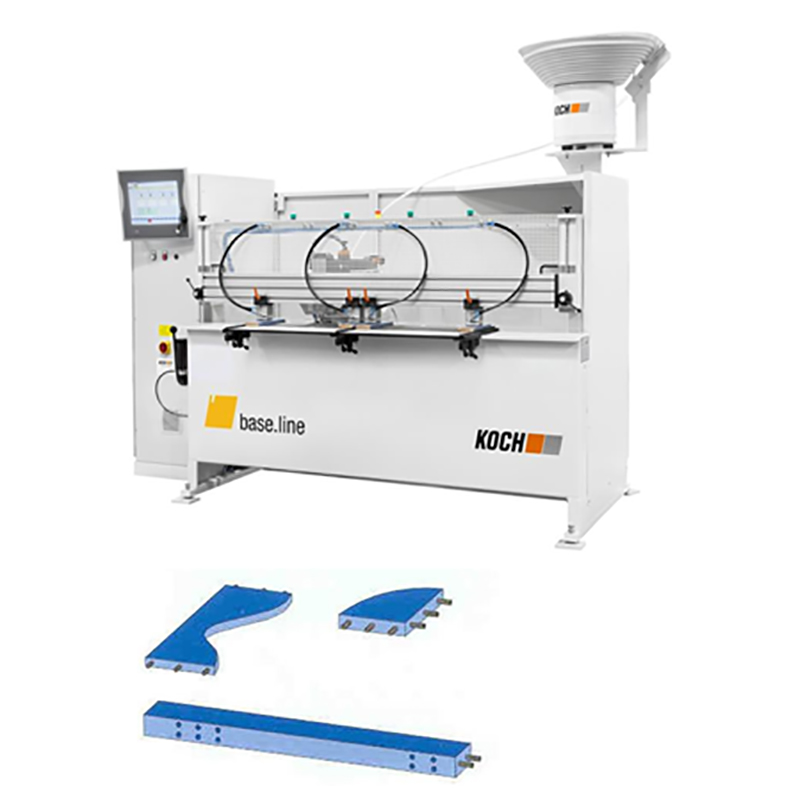

New KOCH Drilling and Dowel Insertion Machine Model SPRINT
STOCK DIMENSIONS
STOCK LENGTH (Y) 110 – 800 MM
(7-7/8”- 31-1/2”) WITHOUT SUPPORT
STOCK WIDTH (X) 20 – 1300 MM
(3/4” – 52”) BETWEEN OUTSIDE FENCES
STOCK THICKNESS (Z) 14 – 30 MM
(½” – 1-1/8”)
2 WORK PIECES EACH WITH MAX. WIDTH 625 MM (25″) CAN BE PLACED INDEPENDENTLY. WIDER WORK PIECES ARE PLACED SEPARATELY.
MACHINE BASE EQUIPMENT INCLUDES:
- WITH 1 HORIZONTAL DRILLING STATION
- WITH 1 GLUE INJECTING AND DOWEL INSERTION STATION
- WITH 1 VIBRATOR HOPPER CONVEYOR
- WITH 1 GLUE PUMP 1:1
- STOCK SUPPORT TABLE 1350 MM WIDE

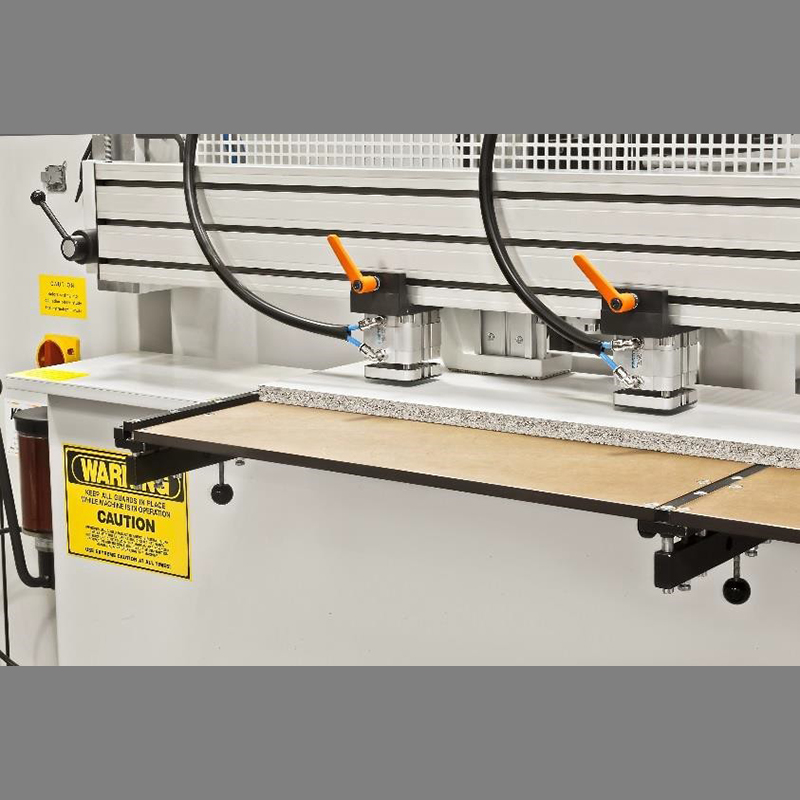

- WITH 4 STOCK CLAMPING CYLINDERS FOR HORIZONTAL DRILLING
- 3 STOP FENCE AT THE LEFT, MIDDLE AND RIGHT SIDE, MANUALLY LOWERABLE
- MECHANICAL DIGITAL READOUTS FOR HEIGHT ADJUSTMENT (STOCK THICKNESS)
- WORKING CYCLE STARTED BY MEANS OF PUSH-BUTTONS
- ADJUSTABLE FEED SPEED ON X-AXIS
- WITH CE-PACKAGE
KOCH NUMERIC WITH 1 NC-AXIS (X)
POSITIONING CONTROL WITH BECKHOFF C6920 INDUSTRIAL PC
INTEL/CELERON 2,2GHZ CPU 2.5”320GB HDD
OPERATING SYSTEM WINDOWS 7 15” FULL HD TOUCH PANEL OFFICE VERSION FOR EXTERNAL PC
USB CONNECTIONS ON PANEL AND COMPUTER AND ON CONTROL CABINET
KOCH SOFTWARE
THE KOCH SPRINT OPERATING SOFTWARE: EASILY EDITABLE BORING PATTERN, PARAMETRIC OR STANDARD
THE STANDARD SOFTWARE WILL ALLOW FOR AUTOMATIC MIRROR IMAGE OF PARTS. EACH ZONE IS ABLE TO RECALL EITHER THE SAME PROGRAM OR ALL DIFFERENT PROGRAMS. A PIECE COUNTER SUPPORTS THE OPERATOR FOR BATCH PROCESSING. A LIBRARY OF PROGRAMS CAN BE STORED ON THE HARD DISK OF THE COMPUTER OR THROUGH NETWORK CONNECTION ON A SERVER.
ALL PLC FUNCTIONS ARE INTEGRATED IN THE MACHINE SOFTWARE AND CAN BE CHECK AS WELL AS TESTED ON SCREEN.
KOCH SOFTWARE HAS AN OPEN ARCHITECTURE TO INTERFACE WITH MOST AVAILABLE CABINET DESIGN SOFTWARE. POST PROCESSORS ARE AVAILABLE FROM CABINET VISION, MICROVELLUM, PATTERN SYSTEMS ETC.
| 0130 | HORIZONTAL DRILLING STATION WITH 1 DRILLING SPINDLE | 1 |
| 1 DRILLING MOTOR 1.25 HP DRILL SPEED 7200 RPM MAX. DRILLING DEPTH 28 MM DRILL BIT MOUNTIN Æ 10 MM TOTAL LENGTH OF DRILL BIT 70 MM
WITH BLOW–OUT JET TO CLEAN DOWEL HOLES 1 DOWEL DRILL |
| 0113 | GLUE INJECTING AND DOWEL INSERTION STATION WITH 1 DOWEL TOOL | 1 |
| DOWEL-Æ 8MM
(OTHER DIMENSIONS ARE AVAILABLE) DOWEL LENGTH 30 – 60 MM (ADJUSTED TO 30- 35 MM) DOWEL PROJECTION 7 – 14 MM
TOLERANCES FOR WOOD DOWELS DOWEL LENGTH +/- 1 MM DOWEL DIAMETER +0,1 / -0,2 MM |
| 0113 | GLUE DELIVERY SYSTEM | 1 |
| GLUE PUMP A PUMP IS THE ONLY PRACTICAL WAY TO DELIVER GLUE. IT ELIMINATES GLUE-FOULING MOISTURE AND LUBRICANTS AND NOZZLE-CLOGGING CONTAMINANTS FOUND IN COMPRESSED AIR, AS WELL AS THE
ACCELERATED OXIDATION OF GLUE THAT NECESSARILY OCCURS WHEN USING COMPRESSED AIR TO DIRECTLY PRESSURIZE THE GLUE SYSTEM. EVERY SPRINT IS FACTORY-TESTED FOR WATER TIGHTNESS. THE GLUE IS PUMPED THROUGH A 50-MICRON FILTER AND CAN REMAIN INERT IN THE SYSTEM FOR UP TO ONE WEEK BETWEEN MACHINE USES. WITH NORMAL USE AND PROPER CARE THE SYSTEM CAN WORK INDEFINITELY WITHOUT PURGING. IF NECESSARY, GLUE PURGING TAKES ABOUT 10 MINUTES.
|
||
