Description
DESCRIPTION

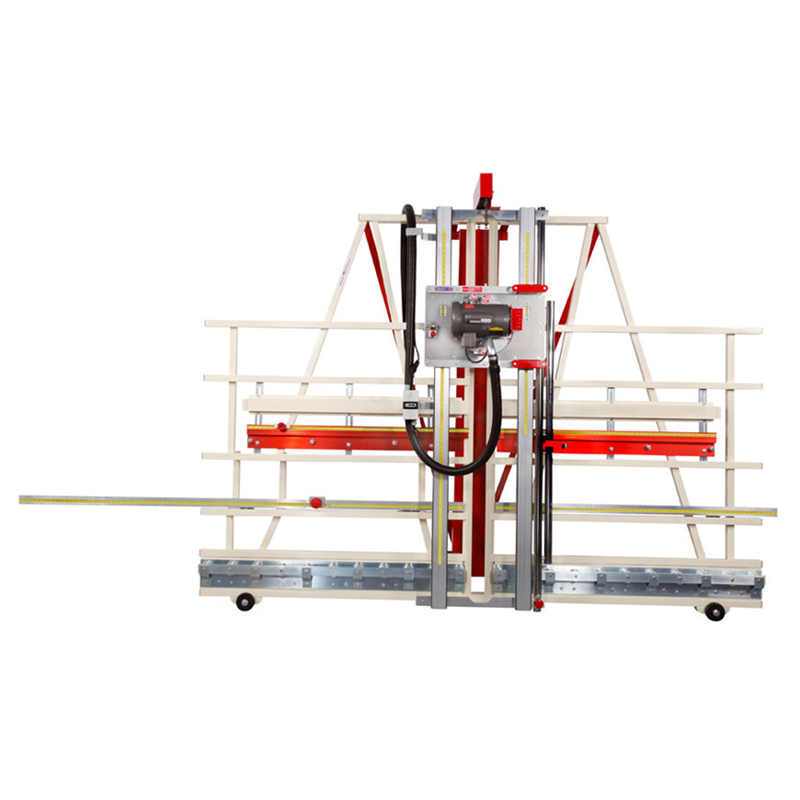

Welcome to cutting at the highest production and accuracy level. If continuous sawing and tight tolerance is required for your operation, these units will deliver. Every component of this saw represents quality and performance. Showcasing 3 Hp, 3~ heavy duty induction motors, heavy extruded beams with precise dual-vee bearings, and the sturdiest frame on the market, these powerhouse machines will deliver cutting accuracies to 0.005” guaranteed.
Standard Equipment:
- 3 Hp, 3~ continuous duty induction saw motor.
- Welded steel frame and integrated stand system.
- Dual V-track precision guide system.
- Adjustable vertical and hori- zontal rulers.
- Quick stop gauges (8′ left, 5′ right).
- Saw blade. Quick change from vertical to horizontal cutting.
- Floating pressure saw foot.
- Solid aluminum material rollers.
- Enclosed counterweight system.
- MID-WAY FENCE™.
- Dust collection ready.
- Hold down bar.
- Wheels.
- 3 year warranty.
- TUV certified to UL/CSA standards
| Features | |
| Max. Crosscut | 64″/1625mm |
|---|---|
| Max. Rip Cut | Unlimited |
| Max. Cut Thickness | 2 1/8″/55mm |
| Cut Accuracy, Straight and Square | .005″/.13mm |
| Saw Blade Diameter | 8″/210mm |
| Motor | 2HP, 1~ 230V, 3HP, 3~ 230V, 3HP, 3~ 460V |
| Frame Length | 156″/3950mm |
| Product shipping information | |
| Weight | 1050 lbs |
| Dimensions | 160 × 98 × 48 in |
Model 7400XL: 2HP single phase 230v price: $14,099.00
Model 7400XLM: 3HP 3-phase 230v price: $13,999.00
Model 7400XLMA: 3HP 3-phase 460v price: $13,999.00
