Description

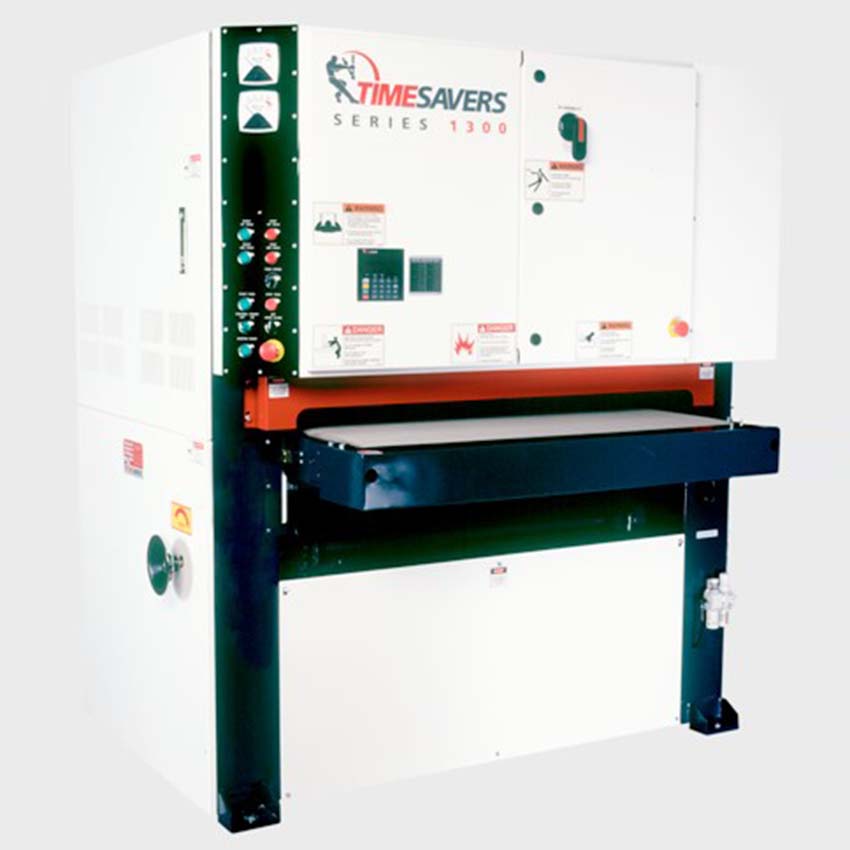

The Model 1321-13-01 has the following specifications:
Abrasive belt size: 37” x 60”
Main motor: 15 HP & 10 HP
Maximum width stock: 36”
Minimum part length: 13”
Maximum thickness opening: 5”
Feed speed: 15-45 FPM
Voltage/Phase/Frequency: 230/3/60
Approximate full load amps at 230 volt: 80 Amps
Motor type: TEFC
Passline height: 33” – 38”
Dust extraction: 2000 CFM (5” static pressure)
Compressed air usage: 4 CFM @ 90 psi
Approximate shipping weight: 4000 lbs.
