Description

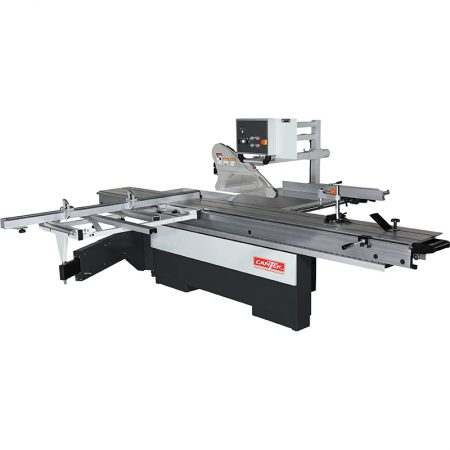

New Cantek D405A (230/575/3/60) 10′ Sliding Table Saw with Power Rise/Fall & Tilt of the Sawblades.
Features:
- 7.5 HP main motor with 1HP scoring motor
- Motorized blade rise/fall
- Motorized blade tilting with electronic angle display on control panel
- Convenient external scoring adjustment
- Solid rip fence with manual fine adjustment and locking lever
- (3) saw blade speeds for optimum cutting results in various materials
- Precision anodized aluminum sliding table with prismatic rollers running on precision ground steel guides
- Aluminum extruded crosscut fence with (2) flip stops with convenient angle adjustment for mitre cuts
- Solid cast iron main table which is ground and polished
- Heavy-duty outrigger for strong support of work-piece during cutting operations
- Overhead CE blade guard with dust port
- Complete with eccentric clamp and wedge for solid wood cutting
Specifications:
| Cast iron fixed table dimension | 21.6” x 35.3” |
| Sliding table dimension | 126” x 15 ½” |
| Extension table (rear) | 37 ½” x 35 ¼” |
| Extension table (front) | 12.6” x 32.7” |
| Main saw blade diameter (max.) | 400mm (15.75”) |
| Main saw bore | 30 mm |
| Max. cutting height at 90o (355mm) | 4.13” |
| Max. cutting height at 45o (355mm) | 2 ¾” |
| Main saw motor | 7.5 HP |
| Main blade speed | 3000/ 4000/ 5000 RPM |
| Scoring saw blade | 120 mm |
| Scoring saw blade bore | 20 mm |
| Scoring blade motor | 1 HP |
| Scoring blade speed | 8000 RPM |
| Max rip cutting width | 51.2” |
| Blade tilting adjustment | Motorized (0°~45°) |
| Main saw height adjustment | Motorized |
| Dust collection system | 4.72” / 2.4” (120/ 60 mm) |
| Electrics | 230/3/60 OR 575/3/60 |
| Machine weight | 1562 lbs, |
| Machine shipping dimension | 83” x 45 ½” x 44” (1782 lbs) |
| Sliding table shipping dimension | 137” x 15 ½” x 14 ½” (432 lbs) |
